Product Description

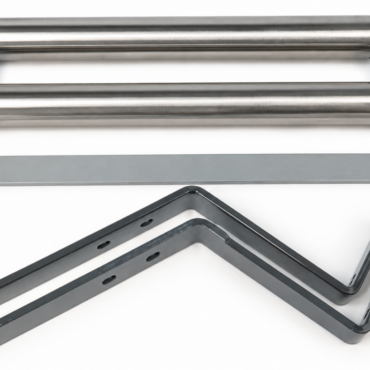

Hannay C2 4-Way Roller Guide Assembly (9939.1062)
Heavy-duty Hannay C2 4-way roller guides extend hose life, protect your vehicle from hose rub damage, and make hose rollout much easier. They keep the hose centered in front of the reel, so it doesn’t get pinched between the reel and the truck when you pull out extra length.
Complete assembly, ready to install. Hannay sells the roller guide components separately. We package everything you need into one assembly: rollers, mounting bracket, cross member, and mounting hardware.
Choose Your Reel Size
The roller guide width matches the disc spacing of your reel, so select your reel model from the dropdown above. Fits Hannay 1500 Series manual and electric rewind hose reels:
| Reel Model | 1/2″ ID Hose | 3/8″ ID Hose |
|---|---|---|
| Hannay 1520-17-18 | 175′ | 275′ |
| Hannay 1522-17-18 | 200′ | 300′ |
| Hannay 1526-17-18 | 300′ | 400′ |
Not sure which size you have? Check the model number on your reel’s tag. On a 1526, the reel frame measures 21.5″ center to center. Fits both manual and electric (E-prefix) versions of each reel. Note: the included brackets are for standard horizontal reel mounting. Vertically mounted reels need different brackets. Contact us if you’re unsure.
What’s Included
- C2 4-way roller guides
- Mounting bracket and cross member
- Mounting nuts and bolts
- Finish: graphite paint (matches Hannay 1500 Series reels)
Does not include the hose reel or hose.
Downloads
Download Hannay C2 Roller Guide Installation Instructions
Specifications
- Weight: 20 lb
- Width: 23 in
- Depth: 2 in
- Height: 5 in
