Product Description

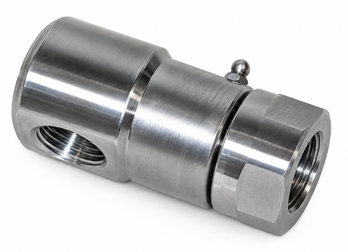

Super Swivel Repair Kit (1/2″, 3/4″ & 1″)
Everything you need to rebuild a leaking or stiff Super Swivel hose reel swivel, instead of replacing the whole swivel. Super Swivels are used on Hannay and many other spray reels. Each kit fits both inline and 90° live swivels in its size. Choose your swivel size above.
Specifications
| Kit Contents | Pressure seal o-ring, back-up ring, dust seal o-ring, wiper ring, ball bearings, lock washer, grease zerk |
| 1/2″ Swivel | SS-8-KIT (also fits 3/8″ swivels) |
| 3/4″ Swivel | SS-12-KIT |
| 1″ Swivel | SS-16-KIT |
How to Pick the Right Size
The size is the pipe thread size on the swivel’s inlet and outlet, not the size of the swivel body. Pipe threads measure larger than their name. Measure the outside diameter of the male threads:
| Swivel Size | Male Thread Measures About |
| 1/2″ | 0.84″ (about 27/32″) |
| 3/4″ | 1.05″ (about 1-1/16″) |
| 1″ | 1.32″ (about 1-5/16″) |
See our guide to measuring pipe thread, or contact us if you’re not sure.
Frequently Asked Questions
When should I rebuild my swivel?
Rebuild it when the swivel drips or sprays at the joint, or when it gets stiff and makes the reel hard to turn. Rebuilding early also keeps leaking chemical off the reel bearings and frame.
Is it hard to rebuild?
No. Most techs can do it in a few minutes with basic hand tools. Follow the rebuild instructions below, and grease through the zerk after reassembly. Call us at 602-371-1993 if you need help.
Related Parts
Downloads
Specifications
- Weight: 0.5 lb
- Width: 2 in
- Depth: 1 in
- Height: 2 in
